In the domain of architectural lighting and residential electrical retrofit, ambiguity often arises from the colloquial conflation of a lamp’s physical envelope with its electromechanical termination. To accurately specify or service directional lighting, an engineer must distinguish between the photometric shape of the bulb and the socket architecture that powers it. The most common source of confusion lies in the "MR16" designation, which is frequently—and incorrectly—used as a catch-all term for any 2-inch directional spotlight, regardless of its voltage or base configuration.

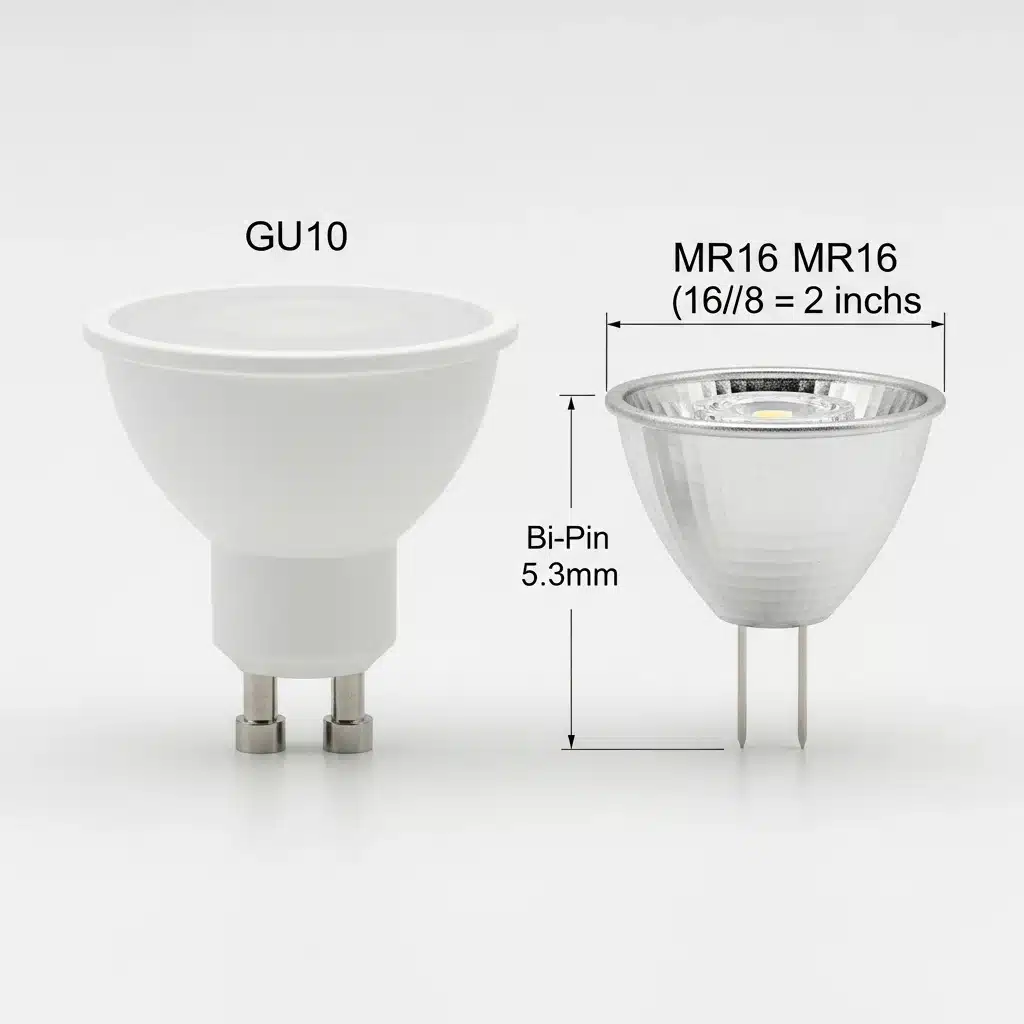

Technically, MR16 refers strictly to the Multifaceted Reflector envelope geometry. Per ANSI nomenclature, the numerical value represents the diameter of the lamp in eighths of an inch. Therefore, the diameter $D$ is calculated as:
$$ D = \frac{16}{8} \text{ inches} = 2.00 \text{ inches} \approx 51 \text{ mm} $$
While the shape of the glass or composite housing remains consistent across standards, the base dictates the electrical topology. The two primary standards competing within this 2-inch form factor are the GU5.3 (commonly associated with low-voltage systems) and the GU10 (associated with line-voltage systems).
For facility managers and retrofit technicians, knowing how to tell the difference between GU10 and MR16 begins with separating the photometric envelope from the electromechanical interface. While a bulb may physically be an MR16 in shape, its base will determine whether it requires a step-down transformer or connects directly to the mains. This distinction is enforced by specific pin geometries designed to prevent the accidental insertion of a low-voltage bulb into a high-voltage socket—a catastrophic error that would result in immediate filament failure or arc faults.
Visual Identification: The Pin Geometry Protocol
To definitively identify the standard without measuring voltage, one must inspect the lamp base or the fixture socket:
By understanding that MR16 describes the head and GU10/GU5.3 describes the feet, engineers can navigate the NEC compliance and load calculation requirements inherent to each standard.
To maintain electrical safety and system integrity, the lighting industry relies on strict ANSI (American National Standards Institute) and IEC (International Electrotechnical Commission) standards to govern the geometry of lamp bases. While the term "MR16" strictly refers to the bulb envelope—a Multifaceted Reflector with a diameter of $16/8$ inches ($2$ inches or $51$mm)—the critical distinction lies in the socket interface. The physical dichotomy between the GU5.3 and GU10 bases is not merely cosmetic; it is a deliberate engineering control designed to segregate line voltage systems from low voltage topologies.
The traditional halogen or LED MR16 utilizes a GU5.3 base. This configuration is characterized by a "Push-Fit" bi-pin system. The designation "5.3" refers to the precise 5.33mm pin center-to-center distance. These pins are solid metal spines, typically measuring between $1.45$mm and $1.6$mm in diameter, designed to slot directly into a ceramic socket via friction retention.
Because MR16 GU5.3 bulbs operate on low voltage (nominally $12\text{V}$ AC/DC), the pin architecture does not require the heavy insulation or mechanical locking needed for mains voltage. However, the connection must support higher amperage. According to Ohm's Law ($I = P/V$), a $50\text{W}$ bulb at $12\text{V}$ draws approximately $4.17\text{A}$. Consequently, the socket contacts must be rated to withstand substantial thermal cycling and current density without arcing. The MR16 GU5.3 vs GU10 base distinction is therefore primarily about current handling versus voltage isolation.
The GU10 base was developed to facilitate direct connection to mains electricity ($120\text{V}$ in North America, $230\text{V}$ in Europe) without the need for an external step-down transformer. The GU10 vs MR16 base pin distance is the primary differentiator, with the GU10 pins spaced exactly 10mm apart (center-to-center).
Unlike the needle-like pins of the GU5.3, the GU10 utilizes a "Twist-Lock" mechanism. The pins act as mechanical lugs with beveled feet. To install, the user inserts the bulb and rotates it clockwise, locking the feet into the socket housing. This design serves two functions:
1. Mechanical Security: It prevents the bulb from vibrating loose or falling out of recessed ceiling cans.
2. Electrical Contact: The twist action engages spring-loaded contacts within the ceramic holder, ensuring a secure connection necessary for high-voltage arcing prevention.
The paramount reason for the GU10 vs MR16 physical difference is the prevention of catastrophic electrical failure. The form factors act as a mechanical key system:
By mandating a 10mm twist-lock configuration for line voltage and a 5.3mm push-fit for low voltage, ANSI/NEMA standards ensure that users cannot physically cross-connect incompatible voltage classes, thereby eliminating the risk of fire or equipment damage at the point of installation.
The fundamental divergence between GU10 and MR16 architectures lies in their input voltage specifications and the resulting electrical infrastructure required to drive the illuminant. While both standards may utilize LED technology requiring low-voltage Direct Current (DC) at the chip level, the method of rectification and voltage regulation differs significantly. A comprehensive GU10 vs MR16 voltage comparison reveals distinct implications for installation complexity, thermal management, and wiring gauges.
The GU10 standard operates on "Line Voltage," connecting directly to the mains power supply—typically 120V AC in North America or 230V AC in Europe. This direct-wire topology simplifies the fixture assembly by eliminating the need for external signal processing equipment.
A common query in retrofit scenarios is: do GU10 bulbs need a transformer? The technical answer is that they do not require an external step-down transformer. Instead, GU10 LED units integrate a miniaturized driver circuit directly within the bulb’s base. This internal circuitry performs two critical functions:
1. Rectification: Converting the 120V Alternating Current (AC) from the mains into Direct Current (DC).
2. Voltage Regulation: Stepping down the high voltage to the low voltage required by the LED array (typically 3V–12V forward voltage depending on the series/parallel die configuration).
While this eliminates points of failure in the ceiling void (such as aging magnetic transformers), it introduces a thermal constraint. The driver electronics are subjected to the heat generated by the LED junction, potentially shortening the lifespan of the bulb compared to systems with isolated power supplies.
The standard MR16 with a GU5.3 base is a Low Voltage device, nominally operating at 12V AC or DC. Because mains power is supplied at 120V, these systems rely on a remote step-down transformer installed between the line voltage branch circuit and the fixture socket.
The choice between 120V and 12V topologies has drastic effects on current draw ($I$) and wiring requirements, governed by Ohm's Law:
$$ I = \frac{P}{V} $$
Consider a lighting circuit powering a 50-watt load:
The 12V system draws ten times the current of the 120V system for the same power output. This high current creates a susceptibility to voltage drop ($V_{drop}$) across the secondary wiring conductors, calculated as:
$$ V_{drop} = I \cdot R \cdot L $$
Where $R$ is the resistance of the wire per foot and $L$ is the length of the run. In MR16 installations, if the transformer is located too far from the fixture or if the wire gauge is insufficient, the voltage at the socket may drop below 11V, causing visible dimming or color shifting in the light source. Consequently, low-voltage secondary wiring requires significantly thicker gauge conductors (typically 12 AWG or 10 AWG) compared to the standard 14 AWG used for line voltage lighting circuits.
The photometric performance gap between GU10 and MR16 architectures is primarily dictated by volumetric constraints within the standard ANSI envelope. While both adhere to the 2-inch diameter form factor, the GU10 vs MR16 LED bulb brightness comparison consistently favors the low-voltage MR16 due to internal topology and thermal management physics.
A GU10 lamp operates at line voltage (120V), necessitating an integrated onboard driver containing an AC-DC buck converter, rectification bridge, and smoothing capacitors. These components occupy significant internal volume, reducing the space available for the thermal management system (heat sink). Consequently, to prevent the LED junction temperature ($T_j$) from exceeding critical limits—which leads to phosphor degradation and premature failure—manufacturers often limit the drive current.
Conversely, the 12V MR16 offloads the voltage transformation to an external magnetic or electronic unit. This architectural decoupling liberates internal volume for high-mass aluminum heat sinks and deeper optical chambers. This allows MR16 LEDs to be driven at higher amperages, yielding higher lumen output per watt ($lm/W$) and superior Center Beam Candlepower (CBCP).
The internal driver displacement in GU10s also compromises optical geometry. To fit the electronics, the optical path length is shortened, forcing the use of shallower Total Internal Reflection (TIR) lenses. This makes it difficult for GU10s to achieve tight spot beam angles ($<15^{\circ}$) without significant spill light.
MR16s maintain the deep reflector geometry of traditional halogens. This allows for precise beam collimation, making them the standard for high-end retail and gallery lighting where tight distinct beam spreads are required to highlight artifacts without washing out surrounding areas.
Control compatibility represents the most complex operational divergence between the two standards. GU10 vs MR16 dimming capabilities differ fundamentally based on the electrical signal path.
GU10 (Line Voltage):
GU10 LEDs connect directly to the mains and generally utilize Forward Phase-Cut (TRIAC) modulation. Modern "CL" rated dimmers effectively chop the leading edge of the AC sine wave, and the internal GU10 driver interprets this duty cycle change to regulate current to the diode array. While simple, cheap internal drivers may exhibit "pop-on" behavior at low dimming levels.
MR16 (Low Voltage):
MR16 dimming is non-trivial because the dimmer controls the transformer, not the lamp. The system behaves as a composite load, governed by the transformer's topology:
* Magnetic Low Voltage (MLV): Requires dimmers designed for inductive loads.
* Electronic Low Voltage (ELV): Requires Reverse Phase (Trailing Edge) dimmers to prevent voltage spikes that can destroy capacitive components.
A critical failure mode in MR16 retrofits involves the "Minimum Load Requirement." Legacy transformers designed for 50W halogens often malfunction when presented with a 7W LED load. If the load power $P_{load}$ is less than the transformer's minimum threshold ($P_{min}$), the circuit may fail to latch, resulting in strobing or dropout.
$$ P_{LED} < P_{transformer\_min} \rightarrow \text{Instability / Flicker} $$
Therefore, while GU10 offers simplified dimming compatibility for residential retrofit, the MR16 ecosystem provides superior optical control and maximum brightness, provided the installer correctly matches the dimmer, transformer, and lamp type.
The transition from low-voltage halogen systems to line-voltage LED architectures is a common query in electrical retrofit projects. Homeowners and facility managers frequently ask, "can I replace MR16 with GU10 bulbs to eliminate transformer maintenance?" The engineering answer is complex; while physically possible, it requires a fundamental alteration of the fixture's electrical topology and carries significant regulatory implications.
The primary barrier to conversion is the voltage differential. An MR16 system operates on a buck converter topology, utilizing a magnetic or electronic transformer to step down mains voltage ($V_{mains} = 120V_{AC}$) to low voltage ($V_{load} = 12V_{AC/DC}$). Conversely, a GU10 LED houses an internal driver responsible for rectification and voltage regulation, requiring a direct connection to the $120V$ mains.
Therefore, converting MR16 fixtures to GU10 is not merely a matter of changing the socket. It requires a bypass of the existing transformer. The procedure involves:
CRITICAL FAILURE MODE: If a user adapts the socket but fails to remove the transformer, the GU10 bulb (designed for $120V$) will be fed $12V$. While this typically results in a failure to ignite ($V_{supply} \ll V_{threshold}$), the reverse—sending $120V$ to a low-voltage socket—can cause immediate catastrophic failure or arc faults.
From a safety and liability standpoint, modifying a fixture is fraught with risk. NEC Article 110.3(B) states that "Listed or labeled equipment shall be installed and used in accordance with any instructions included in the listing or labeling."
When a lighting fixture (luminaire) receives a UL (Underwriters Laboratories) listing, it is tested as a complete system. An MR16 fixture is rated for low-voltage thermal dissipation and wire insulation classes appropriate for $12V$ and high amperage ($I = P/V$, where lower voltage necessitates higher current).
By converting the fixture to $120V$:
* Insulation Ratings: You introduce line voltage into a housing potentially wired with insulation not rated for $120V$, increasing the risk of dielectric breakdown and short circuits.
* Voiding the Listing: The moment the factory wiring is altered to bypass the transformer, the UL listing is void. In a commercial environment, this is a code violation that can lead to inspection failures or denied insurance claims in the event of a fire.
* NEC Article 411: This article governs low-voltage lighting. Converting the system moves it out of this classification and into general wiring requirements, which the original housing may not satisfy regarding junction box volume and grounding.
Thermal dynamics differ significantly between the two standards. Halogen MR16s utilize dichroic reflectors to project heat forward, away from the fixture. GU10 LEDs rely on conductive cooling, sinking heat back into the base. If the existing MR16 housing is a "Non-IC" (Non-Insulation Contact) can designed for forward heat projection, installing a GU10 LED with a rear-facing heat sink can cause thermal entrapment, shortening the lifespan of the LED driver electronics.
While you technically can modify the hardware, the liability and safety risks generally outweigh the benefits. The professional recommendation is to avoid rewiring internal fixture components. Instead, utilize 12V LED MR16 retrofit lamps that are compatible with the existing transformer, or replace the entire recessed housing/trim assembly with a dedicated line-voltage LED module.
The economic evaluation of lighting systems extends beyond the initial Bill of Materials (BOM) to encompass total lifecycle costs, defined by installation complexity, Mean Time Between Failures (MTBF), and maintenance labor. When selecting between Line Voltage (GU10) and Low Voltage (MR16) topologies, engineers must weigh the simplified infrastructure of GU10 against the photometric precision and component isolation of MR16 systems.
From a construction standpoint, GU10 systems offer a lower CapEx. The direct-to-mains architecture eliminates the requirement for a step-down transformer, removing a significant cost center from the fixture assembly. This streamlines the wiring process, as electricians connect standard NM-B (Romex) cabling directly to the junction box without calculating voltage drop or adhering to the amperage limitations of secondary low-voltage conductors.
Conversely, MR16 systems impose higher upfront costs. The inclusion of a magnetic or electronic low-voltage transformer increases the per-fixture material cost. Furthermore, installation requires adherence to NEC Article 411, often necessitating specialized wiring techniques to mitigate voltage drop over long secondary wire runs ($V_{drop} = \frac{2 \cdot L \cdot R \cdot I}{1000}$), which can complicate circuit design in large commercial spaces.
The divergence in reliability stems from where the AC-to-DC power conversion occurs.
GU10 (Integrated Driver Limitations):
In GU10 LED lamps, the rectification, voltage regulation, and thermal management components are miniaturized and embedded within the lamp base. This creates a high thermal density environment. According to the Arrhenius equation, the reaction rate of component degradation doubles for every $10^{\circ}C$ rise in junction temperature. Consequently, the electrolytic capacitors within the internal driver often fail before the LED chip itself, leading to premature lamp mortality, particularly in enclosed, non-IC rated fixtures where heat dissipation is inhibited.
MR16 (Distributed Component Stress):
MR16 systems decouple the primary voltage step-down (120V to 12V) from the lamp. The external transformer handles the heavy lifting of voltage conversion, located away from the heat-generating LED source. While this theoretically extends the life of the LED bulb by reducing internal thermal stress, it introduces a secondary point of failure: the external transformer.
The reliability model for an MR16 system can be expressed as the product of the reliabilities of its series components:
$$ R_{system} = R_{transformer} \times R_{socket} \times R_{lamp} $$
While the lamp ($R_{lamp}$) may last longer, the transformer ($R_{transformer}$) eventually succumbs to thermal aging or electronic fatigue. Electronic transformers are particularly susceptible to overheating and interference, while magnetic transformers are robust but heavy and prone to audible hum over time.
Operational Expenditure (OpEx) is significantly lower for GU10 systems. Maintenance is strictly a "remove and replace" operation. If a GU10 fixture fails, the fault is almost exclusively within the removable bulb.
MR16 maintenance involves complex troubleshooting. A non-functioning fixture requires diagnosing whether the failure lies with the lamp, the socket (often degraded by high amperage heat in halogen legacy systems), or the concealed transformer. Replacing a buried transformer often requires removing the entire trim or accessing the ceiling plenum, resulting in significantly higher labor costs ($L_{maint}$) compared to a simple bulb swap.
For general illumination where utility and low maintenance are paramount, GU10 is the superior economic choice. However, for high-end specification where Color Rendering Index (CRI) > 90 and precise beam control are required, the MR16 form factor often justifies the higher lifecycle cost. The smaller physical footprint of the 12V element allows for superior optics and tighter candela distribution, providing a tangible aesthetic ROI that GU10 flood optics frequently fail to match.
No, they are mutually exclusive without significant hardware modification.
Physically, the base geometries prevent cross-insertion: GU10 utilizes a 10mm twist-lock mechanism designed for mains voltage, while the standard 12V MR16 uses a GU5.3 bi-pin push-fit base. Electrically, the topology is incompatible. A GU10 bulb is designed for 120V AC (Line Voltage). An MR16/GU5.3 bulb operates on 12V AC/DC (Low Voltage).
Attempting to force a 12V MR16 LED into a 120V socket (if the pins were modified) would result in immediate catastrophic failure of the bulb's internal driver due to massive over-voltage. Conversely, inserting a 120V GU10 bulb into a 12V system is physically impossible without changing the socket; if wired, the bulb would fail to strike due to insufficient potential difference.
Flickering in retrofitted MR16 circuits is almost exclusively caused by transformer incompatibility, specifically regarding minimum load requirements ($P_{min}$).
Legacy halogen lighting utilizes Electronic Low Voltage (ELV) transformers, which are switching power supplies requiring a resistive load to maintain oscillation. A typical 50W halogen transformer might have a load range of 20W–50W. When replacing a 50W halogen with a high-efficiency 7W LED, the load falls below the transformer's threshold:
$$ P_{LED} < P_{min\_transformer} $$ $$ 7W < 20W $$ Consequently, the transformer output cuts out, the LED turns off, the load resets, and the transformer fires again, creating a visible strobe effect (often at 50Hz/60Hz or lower). To resolve this, one must replace the legacy transformer with a constant-voltage LED driver (0W minimum load) or use an LED with a "high-load" circuit design intended to trick the transformer.
Safety is relative to the hazard type: shock risk versus thermal/fire risk.
Technically, yes, but it presents significant compliance hurdles. Converting a fixture involves bypassing the step-down transformer and replacing the low-voltage socket with a line-voltage GU10 socket.
However, per NEC 110.3(B), equipment must be installed in accordance with its listing and labeling. If the original fixture housing was UL-listed strictly for low-voltage (12V) use, it may lack the necessary dielectric insulation or thermal dissipation properties required for 120V wiring. Modifying the internal architecture voids the UL listing, transferring all liability to the installer and potentially violating local building codes. Conversions should only be attempted if the housing is dual-rated or if the installer can verify the enclosure meets Class 1 wiring standards.
