Warm White vs Cool White vs Daylight: A Technical Engineering Guide

In the field of electrical engineering and architectural lighting design, the selection of a light source is never merely a matter of aesthetics. It is a calculation of Correlated Color Temperature (CCT), Color Rendering Index (CRI), and spectral power distribution. Whether specifying for a commercial high-bay application or a residential retrofit, understanding the physics behind types of light bulbs colors is critical for visual acuity, energy efficiency, and biological compliance.

This guide moves beyond basic definitions to explore the technical nuances of lighting spectrums, providing the data necessary to make informed engineering decisions.

Understanding Light Bulb Types and Colors Through Physics

To understand the visible difference between light sources, we must look at the Kelvin scale. The color temperature of a light bulb is derived from the concept of a "black body radiator." When a theoretical black body is heated, it emits light that changes color as the temperature rises—from red to orange, to yellow, to white, and finally to blue.

While incandescent filaments actually heat up to produce light (thermal radiation), LED technology uses phosphors to mimic these colors. Therefore, we use the term Correlated Color Temperature (CCT).

The Warm White Kelvin Chart

Engineers and lighting designers rely on the warm white kelvin chart to categorize these thermal appearances. Unlike standard consumer charts, a technical breakdown considers the specific wavelength dominance.

Warm White vs Cool White vs Daylight: The Core Differences

The debate of warm white vs cool white vs daylight is fundamentally a discussion about the Spectral Power Distribution (SPD).

1. Warm White (2700K–3000K): The SPD peaks in the red and orange wavelengths (600nm–700nm). This mimics the sunset and traditional tungsten filaments. It causes red and wood tones to "pop" but can muddy blues and greens.
2. Cool White (4000K): This is often considered the "neutral" point in LED technology. The phosphor mix is adjusted to reduce the yellow spike, resulting in a cleaner white that increases visual contrast without the harshness of higher temperatures.
3. Daylight (5000K–6500K): These emitters have a significant spike in the blue spectrum (approx. 450-480nm). While this provides high contrast, it increases scattering (Rayleigh scattering effect), which can sometimes cause glare in indoor environments if not diffused properly.

Daylight vs Bright White vs Soft White

Confusion often arises in retail nomenclature. When comparing daylight vs bright white vs soft white, refer to the specific Kelvin value rather than the marketing label:

• Soft White is the standard replacement for 60W incandescent bulbs (2700K).
• Bright White usually refers to the 3500K range, bridging the gap between cozy and clinical.
• Daylight is strictly 5000K and above, intended to simulate the color of the sun at solar noon.

Technical Query: Which is Brighter Cool White or Warm White?

A common question in lighting design is which is brighter cool white or warm white? The answer involves differentiating between luminous flux (measured in lumens) and perceived brightness.

Technically, if two LEDs have the same wattage and efficiency, a Cool White LED will often output slightly more lumens than a Warm White LED. This is due to the "Stokes Shift"—converting the blue LED pump light to warm light requires more phosphor density, resulting in slightly higher energy loss (lower efficacy).

Furthermore, the human eye reacts differently to these spectrums. The eye has two types of photoreceptors: rods (scotopic vision, sensitive to blue/green) and cones (photopic vision, sensitive to detail/color). Cool white light activates the scotopic vision more effectively, creating a higher perceived brightness, even if the measured lumens are identical.

Expert Calculation: Luminous Efficacy

To determine the actual efficiency of a fixture, engineers use the Luminous Efficacy formula.

$$ \eta = \frac{\Phi}{P} $$

Where:
* $ \eta $ (Eta) = Luminous Efficacy (lumens per watt, lm/W)
* $ \Phi $ (Phi) = Luminous Flux (lumens)
* $ P $ = Power consumption (watts)

Example Scenario:
A kitchen requires an illuminance ($ E $) of 500 Lux on a counter surface area ($ A $) of 3 square meters.

First, calculate the required Total Luminous Flux ($ \Phi $):

$$ \Phi = E \times A $$
$$ \Phi = 500 \text{ lux} \times 3 \text{ m}^2 = 1500 \text{ lumens} $$

If choosing between a Warm White LED (80 lm/W) and a Cool White LED (95 lm/W), the power requirements differ:

For Warm White:
$$ P_{warm} = \frac{1500}{80} = 18.75 \text{ Watts} $$

For Cool White:
$$ P_{cool} = \frac{1500}{95} = 15.78 \text{ Watts} $$

Result: The Cool White source is technically more efficient and creates higher perceived brightness for the task.

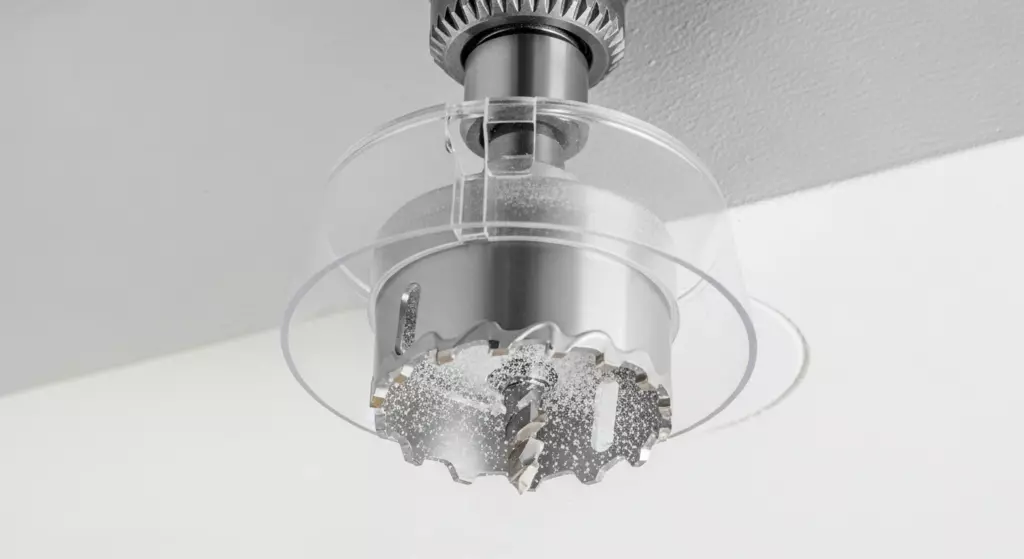

Using a hole saw with dust bowl to cut ceiling aperture for pot lights

A hole saw with a dust bowl is used for cutting precise apertures for recessed "pot" lights. The transparent shield captures drywall dust and debris, protecting your eyes and keeping the workspace clean. It is a vital tool for mess-free, professional installation in finished ceilings.

Application Analysis: Warm White or Cool White for Kitchen?

When deciding warm white or cool white for kitchen applications, a layered approach is the industry standard. A kitchen is a hybrid space: it is a laboratory for food preparation (requiring high color fidelity and contrast) and a social space (requiring ambiance).

The Split Strategy

• Task Lighting (Under-cabinet/Island Pendants): Use Cool White (4000K). This temperature maximizes contrast, making it easier to read recipes and spot impurities on produce. It also renders fresh food (greens and meats) more accurately if the CRI is 90+.
• Ambient Lighting (Recessed Cans/Cove): Use Warm White (3000K) or Neutral White (3500K). This prevents the kitchen from feeling like a hospital cafeteria during evening dining.

Cool White vs Warm White Color Temperature: Biological Impact

The cool white vs warm white color temperature discussion extends to human biology. High-Kelvin light (Cool White/Daylight) suppresses melatonin production, promoting alertness. Low-Kelvin light (Warm White) allows melatonin secretion, aiding sleep cycles.

The Difference Between Cool White and Daylight

While they seem similar, the difference between cool white and daylight is significant in professional environments:
* Cool White (4100K): Standard for offices. It reduces eye strain compared to daylight but maintains focus.
* Daylight (6500K): Used for color matching (print shops, auto body). In a residential setting, pure daylight bulbs can appear harsh and clinical, often giving interiors a sterile, blue cast.

Visualizing the Spectrum: What Does Warm White Look Like?

For clients asking what does warm white look like, describe it as the "golden hour" light. It is soft, forgiving on skin tones, and creates a sense of thermal warmth. Unlike the sterile white of a smartphone screen, warm white casts yellowish highlights. It is the color of relaxation.

Comprehensive Light Bulb Types and Colors Checklist

Use this checklist before finalizing your lighting schedule:

FAQ: Common Lighting Engineering Questions
